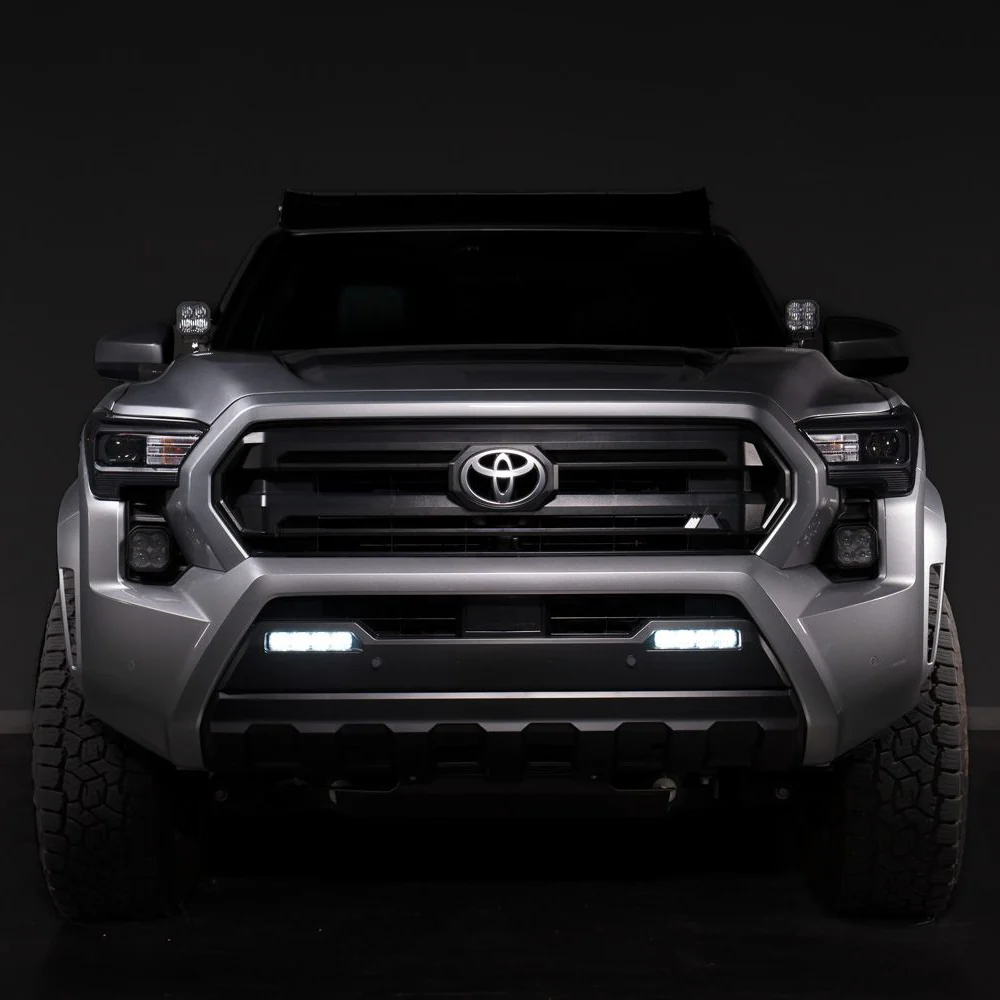

Upgrade your Toyota Tacoma with our SS6 LED Fog Light Kit, delivering powerful, road-legal performance and a clean, factory-style appearance. This bolt-on kit mounts a pair of 6-inch Stage Series LED Light Bars using CAD-designed brackets and factory mounting points. No cutting or drilling required! With higher light output, modern optics, and greater intensity than anything else on the market, the new Stage Series Lightbars are the most capable lightbars available today!

Features

• Direct fitment on 2024-2026 Toyota Tacoma.
• Patented TIR Optics for maximum efficiency and output.
• True amber backlight provides unique accent lighting.

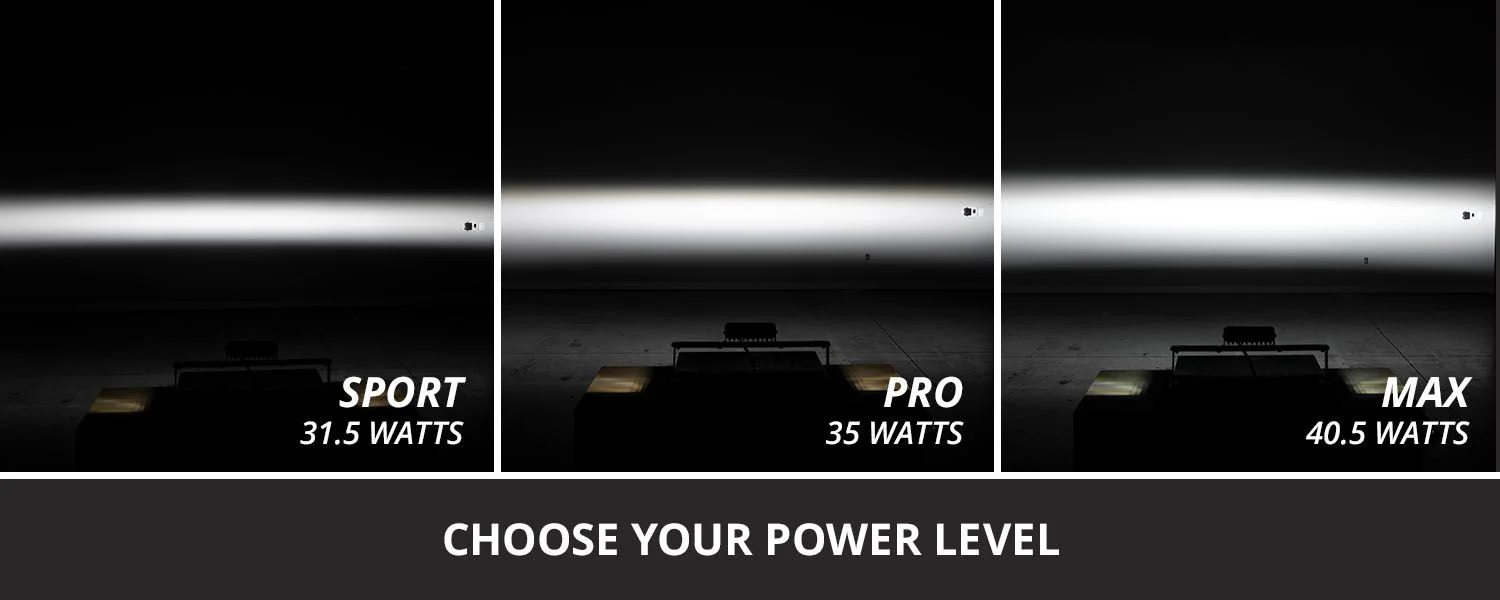

• Available in Sport, Pro, and Max power levels.
• Utilizes existing mounting points for simple installation.
• Limited Lifetime Warranty.
• Made in USA with Global Materials.

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Functional Beam Patterns. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.

SAE Fog uses our distinctive FineLine optic, which provides an exceptionally wide pattern. The SAE Fog optic shines with a 90x10 degree pattern to fully illuminate the area directly in front of your vehicle. They are legal for on-road use as fog lights.

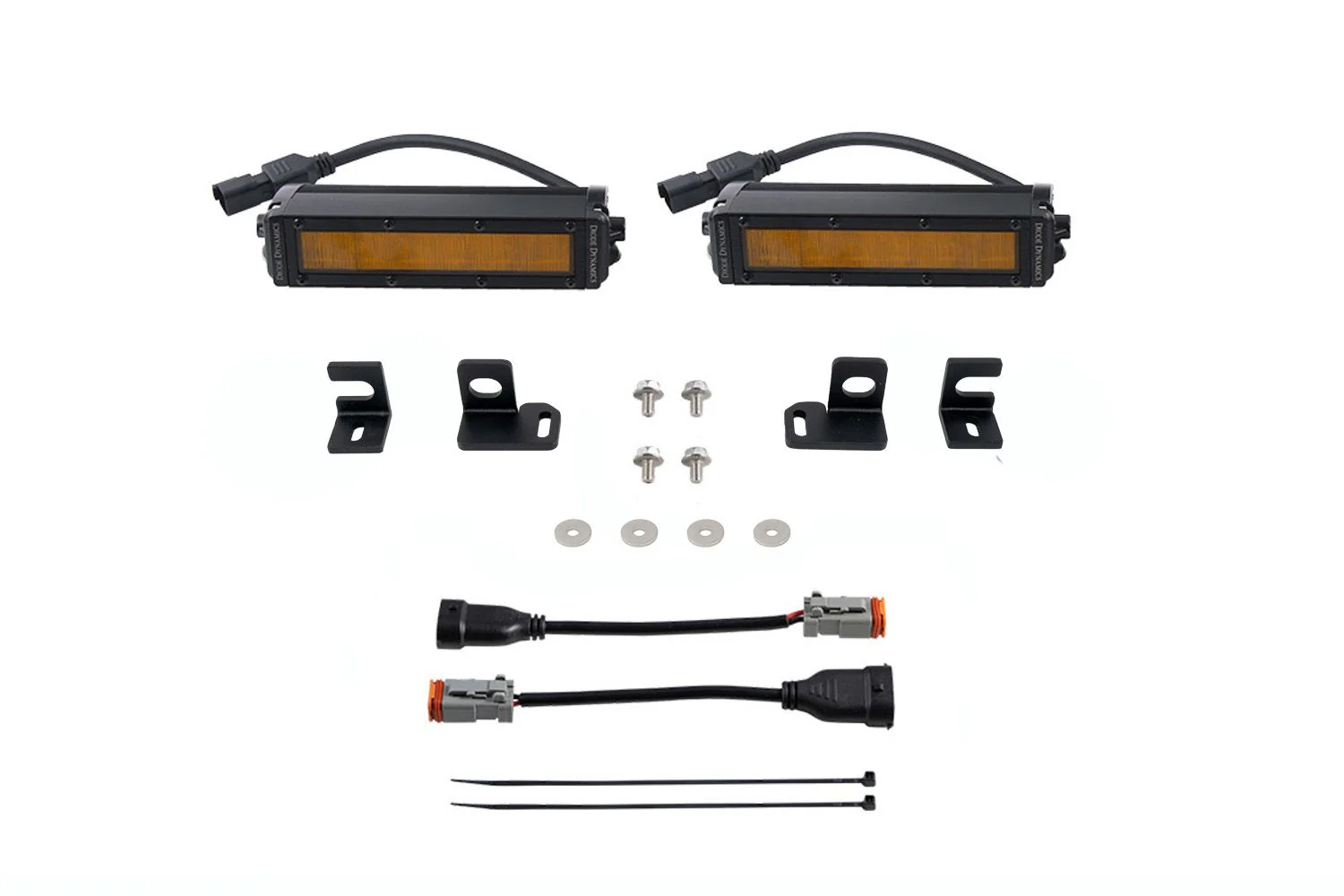

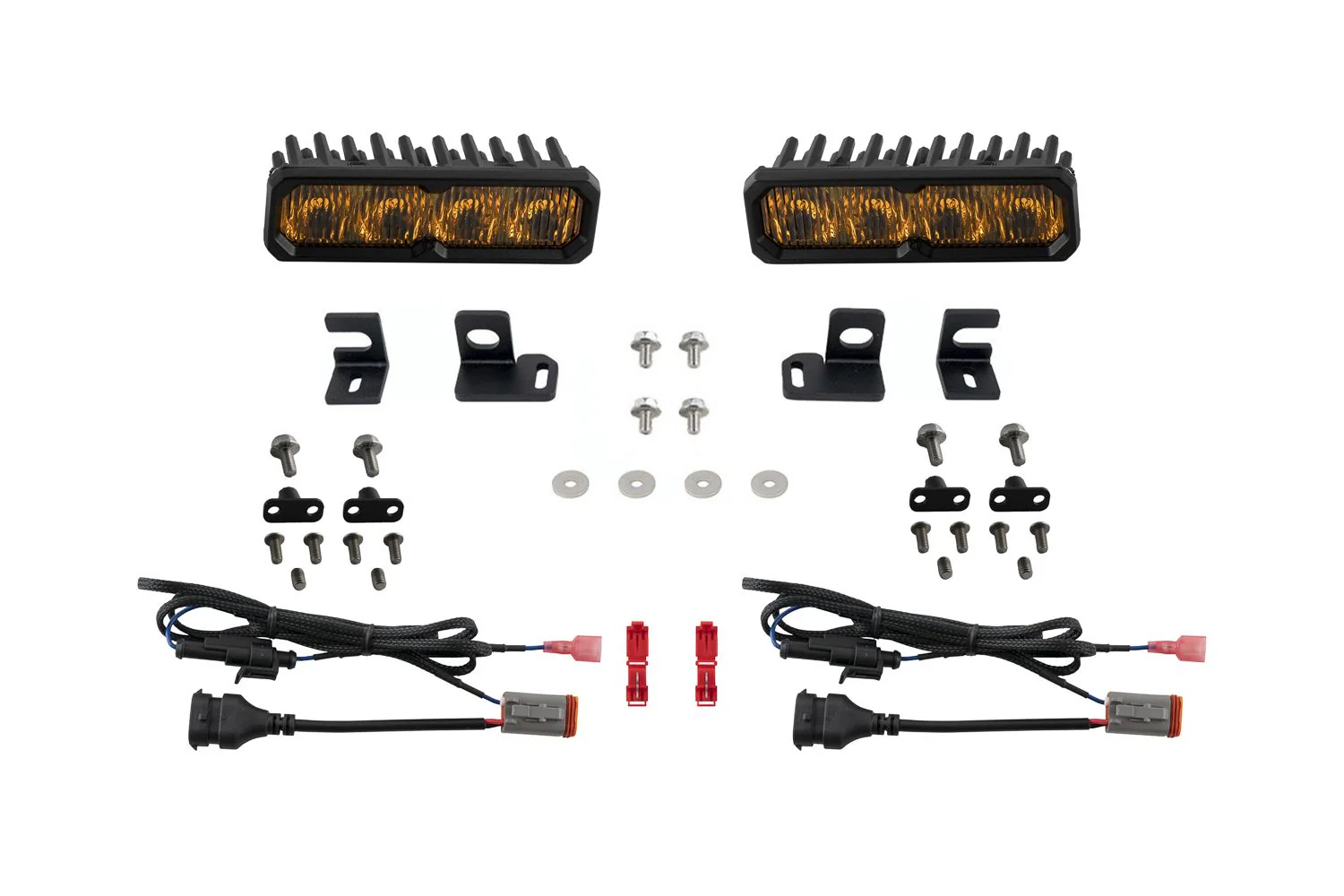

What's Included

• Four (4) Application-specific brackets for installation on 2024+ Toyota Tacoma
• Two (2) 6" Classic or SS6 LED light bars
• Two (2) H11 DT Adapters
• Installation Guide

Fitment

NOTE: This kit is not compatible with the Trail Hunter trim or models equipped with Rigid Dual Color Fog Lights.

• Make: Toyota
• Model: Tacoma
• Years: 2024, 2025, 2026

Color/Optic/Power Level	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Raw Output (lumens)	Output Color
White SAE Fog/Wide Sport	15,000 cd	150 lux	1,844 lm	6000K White
White SAE Fog/Wide Pro	16,000 cd	160 lux	6,272 lm	6000K White
White SAE Fog/Wide Max	20,300 cd	203 lux	7,920 lm	6000K White
White SAE Fog/Wide Classic	13,000 cd	130 lux	2,280 lm	6000K White
Yellow SAE Fog/Wide Sport	Coming Soon	Coming Soon	1,844 lm	3000K Yellow
Yellow SAE Fog/Wide Pro	Coming Soon	Coming Soon	6,272 lm	3000K Yellow
Yellow SAE Fog/Wide Max	Coming Soon	Coming Soon	7,920 lm	3000K Yellow
Yellow SAE Fog/Wide Classic	7,400 cd	74 lux	1,140 lm	2000K Yellow
