Diode Dynamics Elite Series Fog Lamps for Ram 1500 W/O Factory LED Fog Lights (2019-2024)
Introducing the Diode Dynamics Elite Series Fog Lamps for Ram 1500 W/O Factory LED Fog Lights (2019-2024): the first OE-style fog lights that were designed for true performance. For 2019 models, this kit is only compatible with the "New" body style. This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light for the Ram 1500 delivers up to 5 times more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.
Features
- High-performance OEM-grade replacement for Ram 1500
- Custom-engineered optic provides extremely wide, intense light output

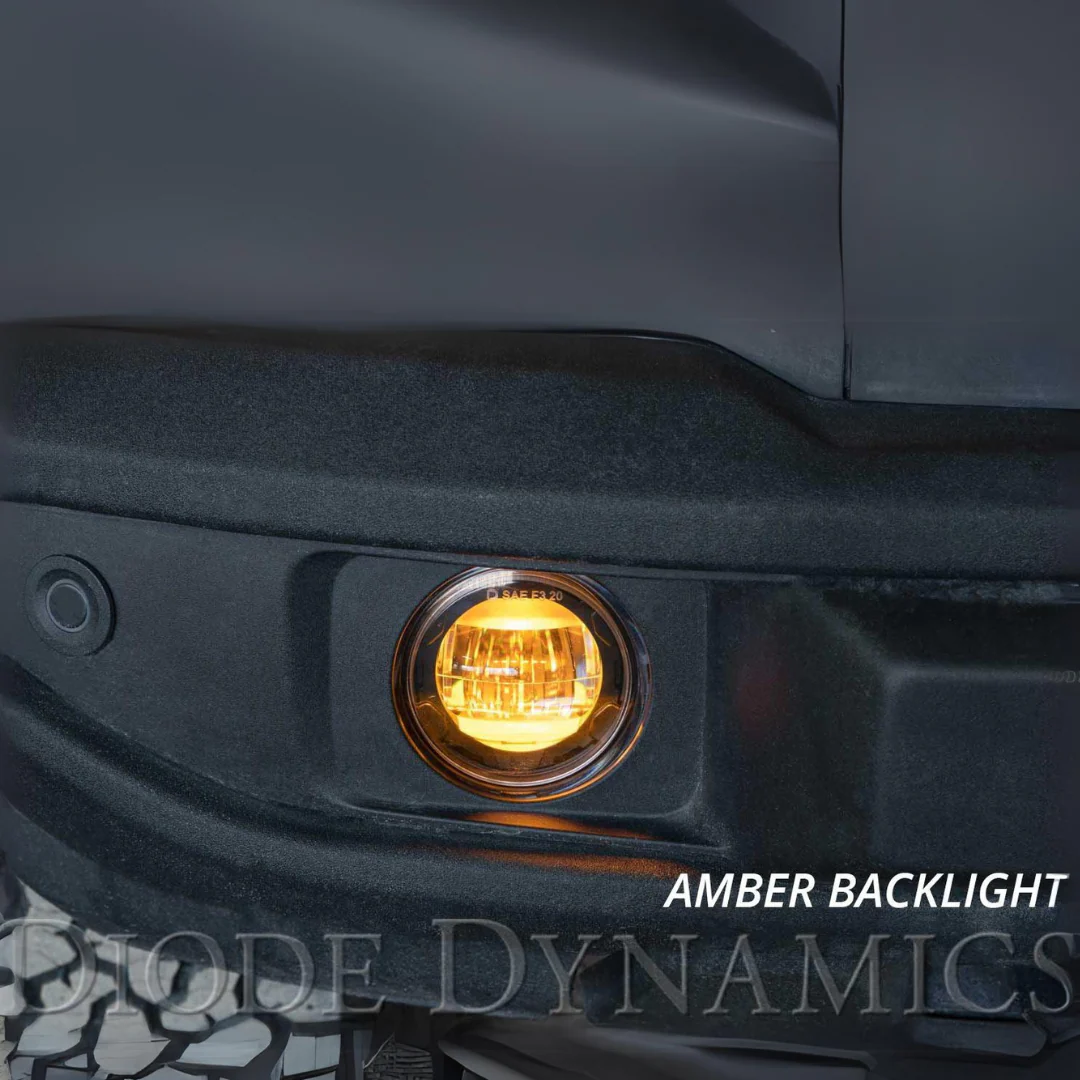

- Distinctive integrated amber backlight
- Road-legal fog light (SAE F3 compliant)
- Plug and play main beam, no modification needed
- Engineered and assembled in USA

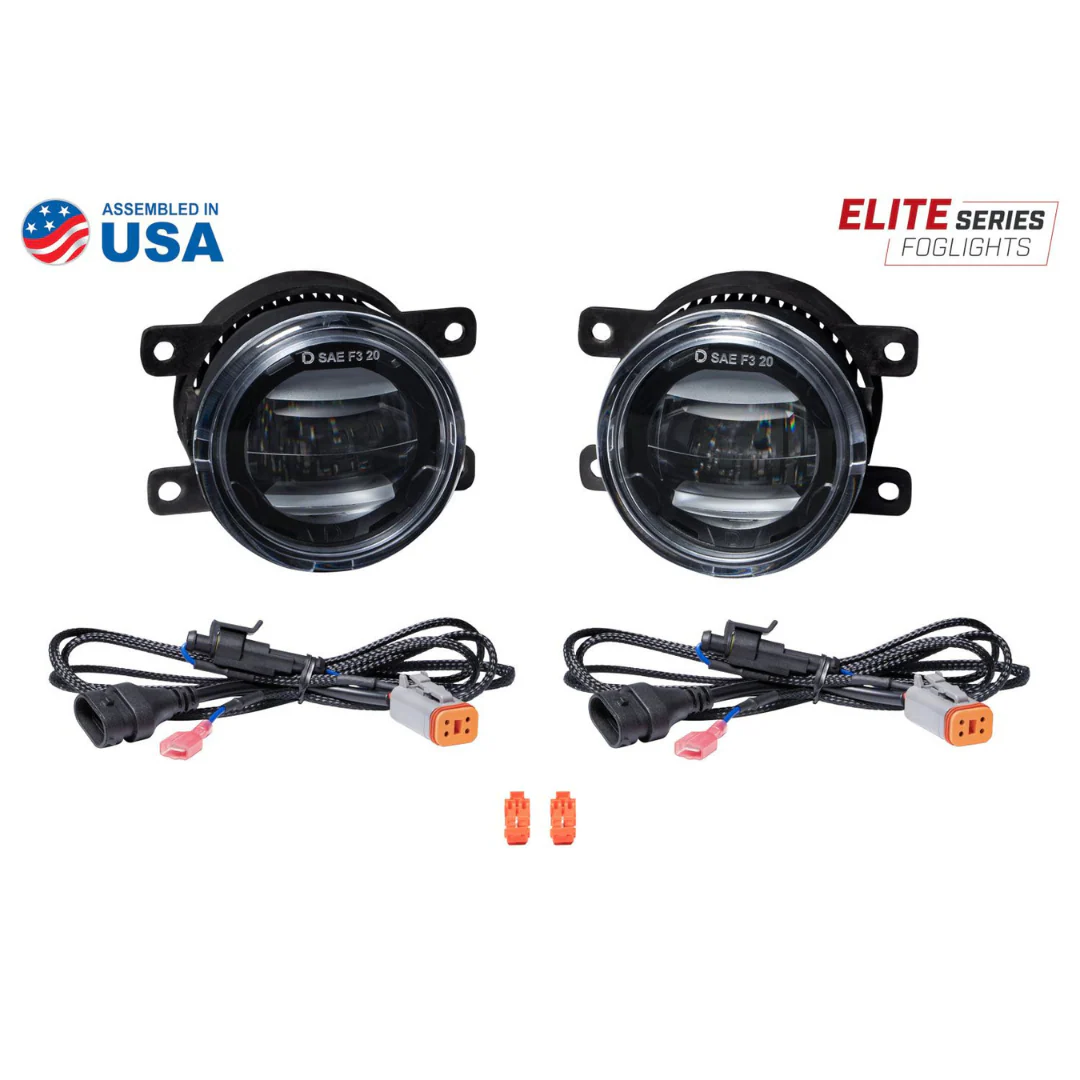

In the Box:

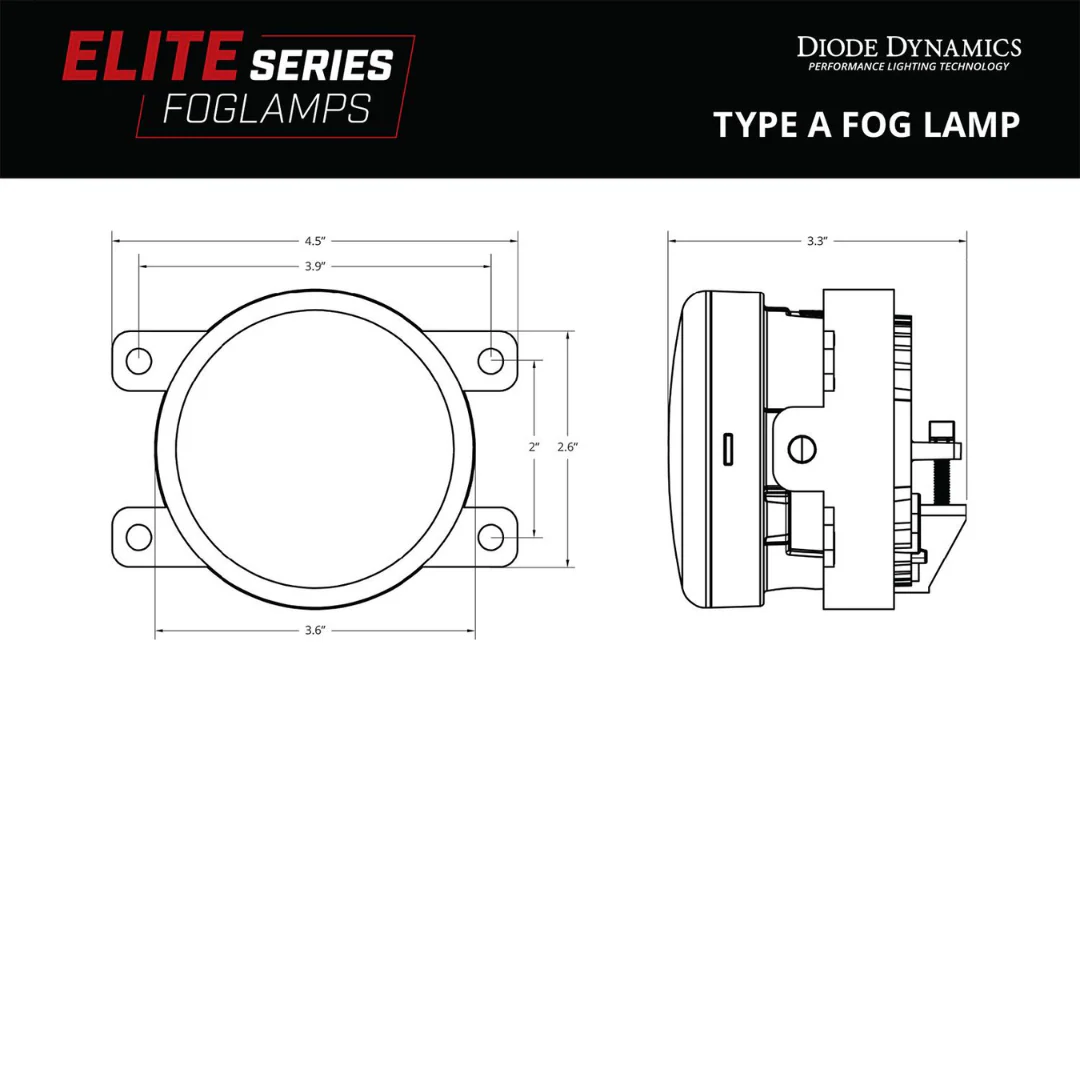

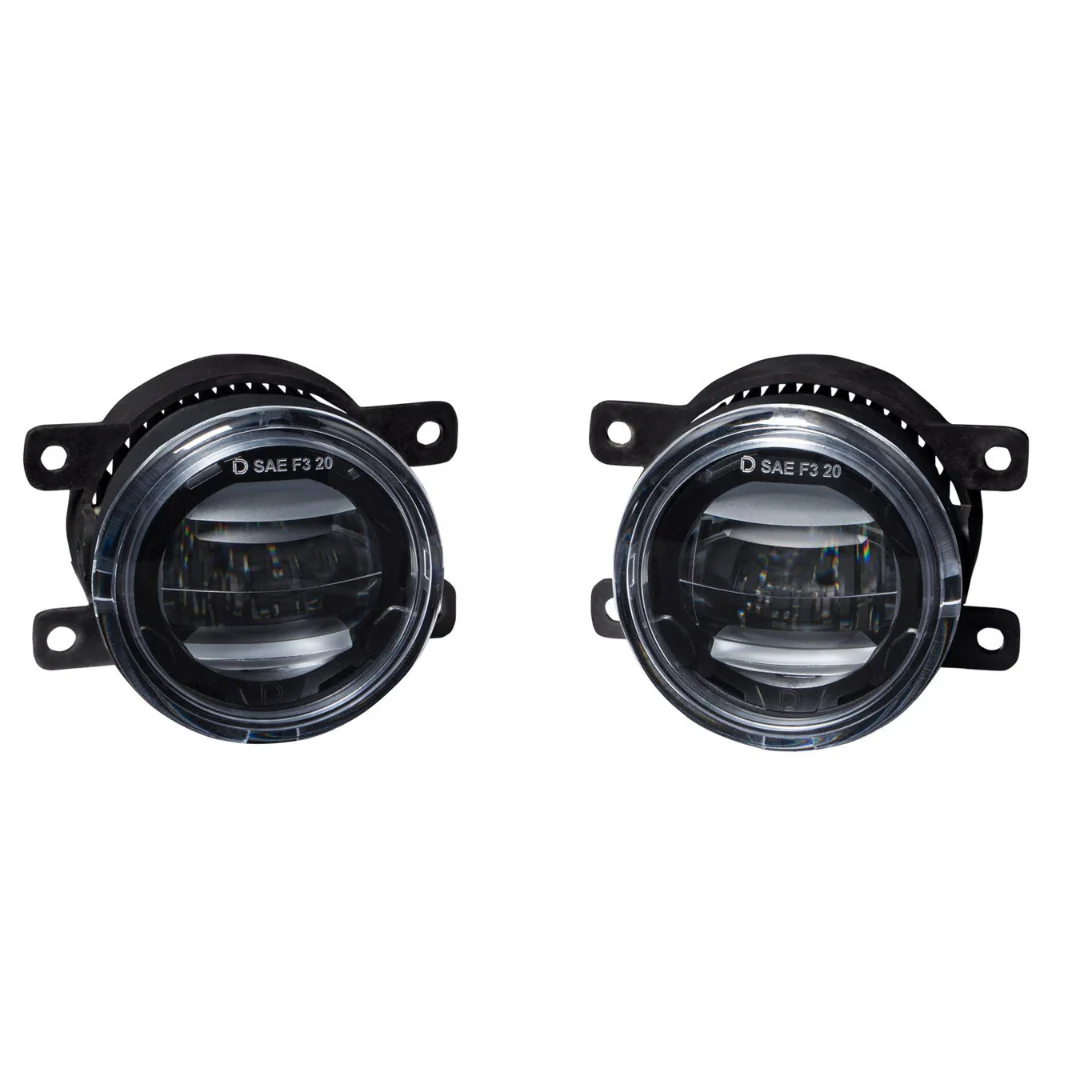

- Two (2) Elite Series Type A fog lamps
- Two (2) H11 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
Fitment
Note: For 2019 models, this kit is only compatible with the "New" body style. This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
- Aiming Instructions: Included
- Installation Time: 30-60 minutes
- Tools Needed: Basic Toolset
- Modification: None

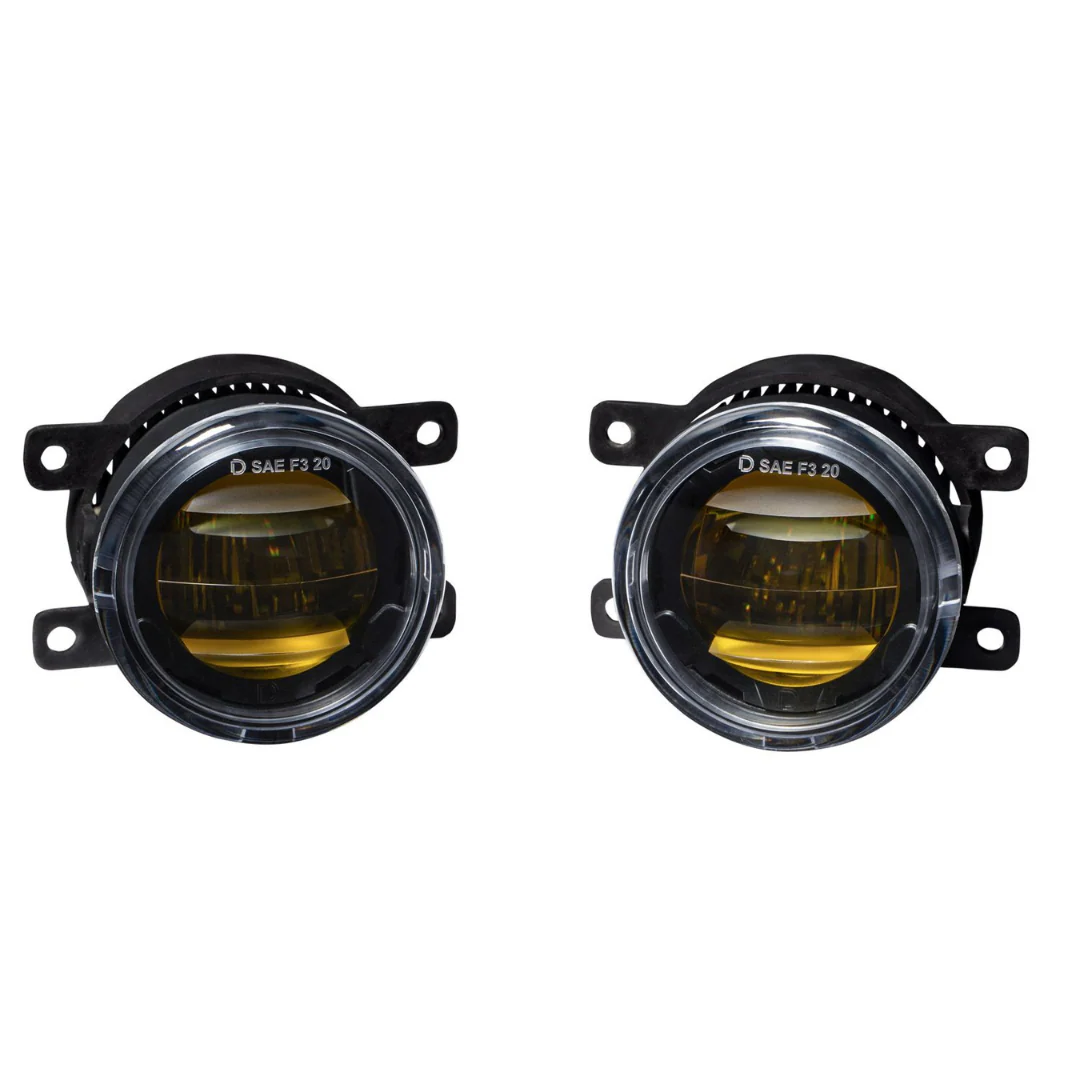

- Raw Lumens: White: 1,850 lm, Yellow: 1,650 lm, Backlight: 14 lm
- Intensity (cd): White: 13,000 cd, Yellow: 11,400 cd
- Color Temp (CCT): 1800K, 3000K, 6000K
- Beam Angle: Fog, 80°x6°
- Power (watts): White & Yellow Main Beam: 18, Backlight: 0.3
- Operating Voltage: 9-16V
- Current (amps @ 13.2V): White & Yellow Main Beam: 1.4A, Backlight: 25mA
- Wire Size: 16AWG & 18AWG
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Multi-Die Automotive Emitters
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP68 Waterproof
- Unit Weight (lb): 0.85
- Product Weight (lb): 2.25
- Shipped Weight (lb): 2.75
